Color Organ

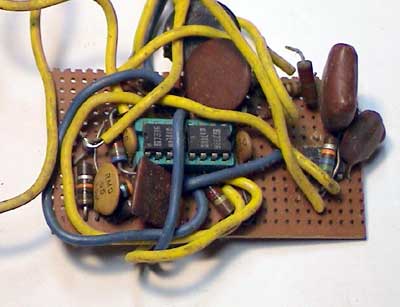

This rats nest was a color organ I made 1972 and uses butterworth filters to achieve good bandpass for each frequency range. Notice it too was built in a cigar box!
