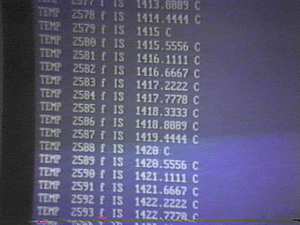

Shot of the computer's screen. Once wired, I fired up the 8052 computer and ran a quick little program to test the computer (BASIC program that converts F to C).
|

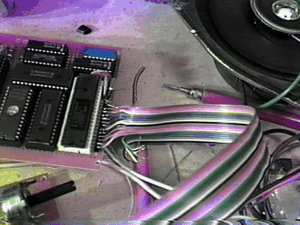

Ribbon cable connecting the computer board to the controller board.
|
|
|
|
|

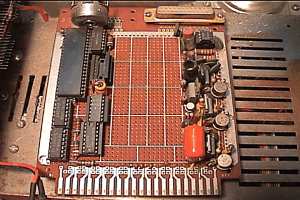

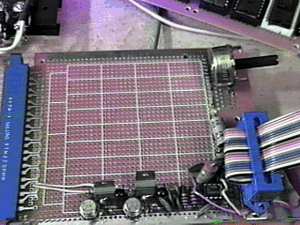

The controller board with the motor control transistors.
|

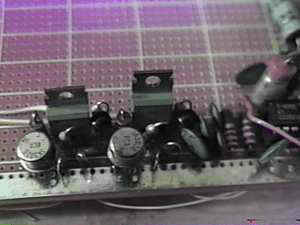

Close up view showing the six transistors for the 2 motors.
|
|
|
|
|

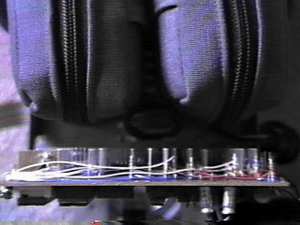

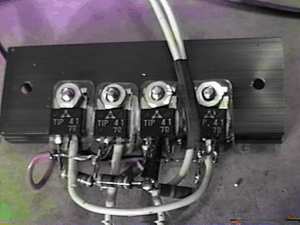

The motor controller power transistors. There are 4 for each motor. They form a bridge and eliminate the need for a relay to switch directions.
|
The circuit "all over the place" during the bread board stage.
|
|
|
|
|

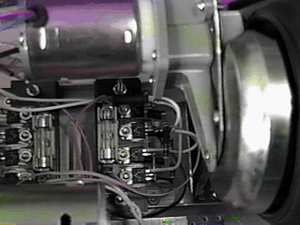

You can see the 2 sets of 4 power transistors for the motors as well as the fuses.
|
Bottom view showing the control board location and edge connector with the motors running.
|
|
|
|
|
Finished 8052 CPU board with other circuitry.
|
Next an 8255 was added to the controller board to help control the sonar unit and bumper detection. Notice that a DB25 connector is also needed besides the board edge connector.
|
|
|
|
|

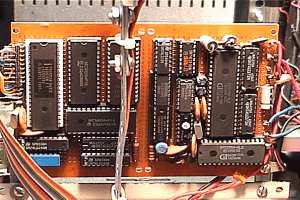

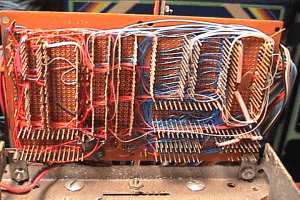

The finished wiring of the CPU board. Over a 100' of wire is here.
|
Top view looking down showing the space between the CPU board and battery pack.
|
|
|
|
|

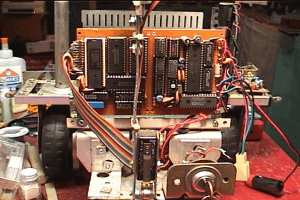

The CPU board is mounted vertically at the end of the chassis, behind the battery pack.
|
The sonar unit is mounted above to shoot over the front of the robot.
|
|
|
|
|

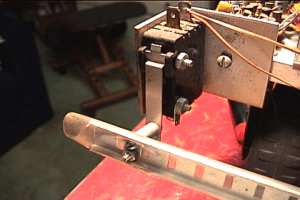

Close up view of one of the bumper switches.
|
Looking down at the front showing the front bumper after it has run into a few things.
|
|
|
|
See a short video of one of the first test runs of Mikey's sonar circuit.
|
